CAST IRON SINGLE FACED SLUICE GATE

  • Available in circular, square or rectangular opening
  • Generally conforming to IS 3042:1965 or IS 13349: 1992 / AWWA C501
  • Open Channel Gate as per IVC Design
  • Rising or Non-rising spindle
  • Adjustable machined tapered wedging arrangement to improve sealing
  • Suitable for manual (headstock) or Power (electric / pneumatic) operation
  • All metal seats / faces are riveted to the frame / door using a special technique, thus eliminating any possibility of their becoming loose in service
  • Trim material to suit service condition

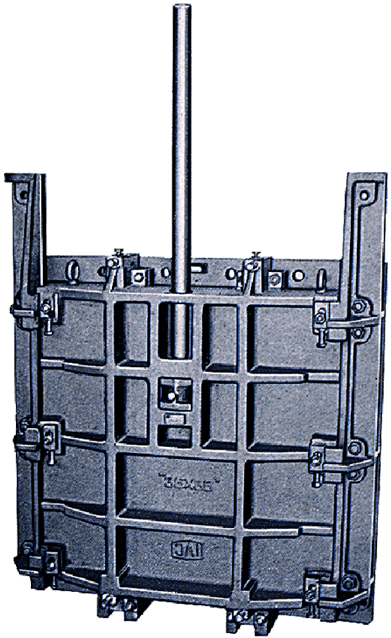

CAST IRON SINGLE FACED SLUICE GATE
(Conventional & flush bottom type)
Sizes : 300mm to 2500mm

CONFORMING TO
IS : 13349 : 1992 / AWWA C 501
(With Wall Thimble)

CONFORMING TO
IS : 3042 : 1967
(Spigot Back)

GENERAL ARRANGEMENT

STD. CONSTRUCTION:FRAME, DOOR, WALL THIMBLE, GUIDE STRIPS : CAST IRON, IS 210 Gr. FG 200 / 260 (GGG 25)

GATE SPINDLE :S.S., AISI 410 / AISI 431 / AISI 316
EXTENSION SPINDLES: M.S. / S. S.
COUPLING: M.S. / S. S.
SEATING FACES: BRASS / BRONZE / S. S.
GUIDE BRACKETS: CAST IRON, IS 210 Gr. FG 200 / 260 (GGG 25)
FLUSH BOTTOM RESILIENT SEAL: EPDM

OPERATING HEAD:CLASS I, II & III

PLEASE CONSULT US FOR SPECIAL MATERIAL OF CONSTRUCTION AND CHANNEL MOUNTED GATES.
